모델 3 > 14 - 인스트루먼트 패널 > 1405 - 인스트루먼트 패널 > 대시 서포트 프레임
2020. 10. 18. 17:11ㆍ테슬라 모델 3/14 - 인스트루먼트 패널

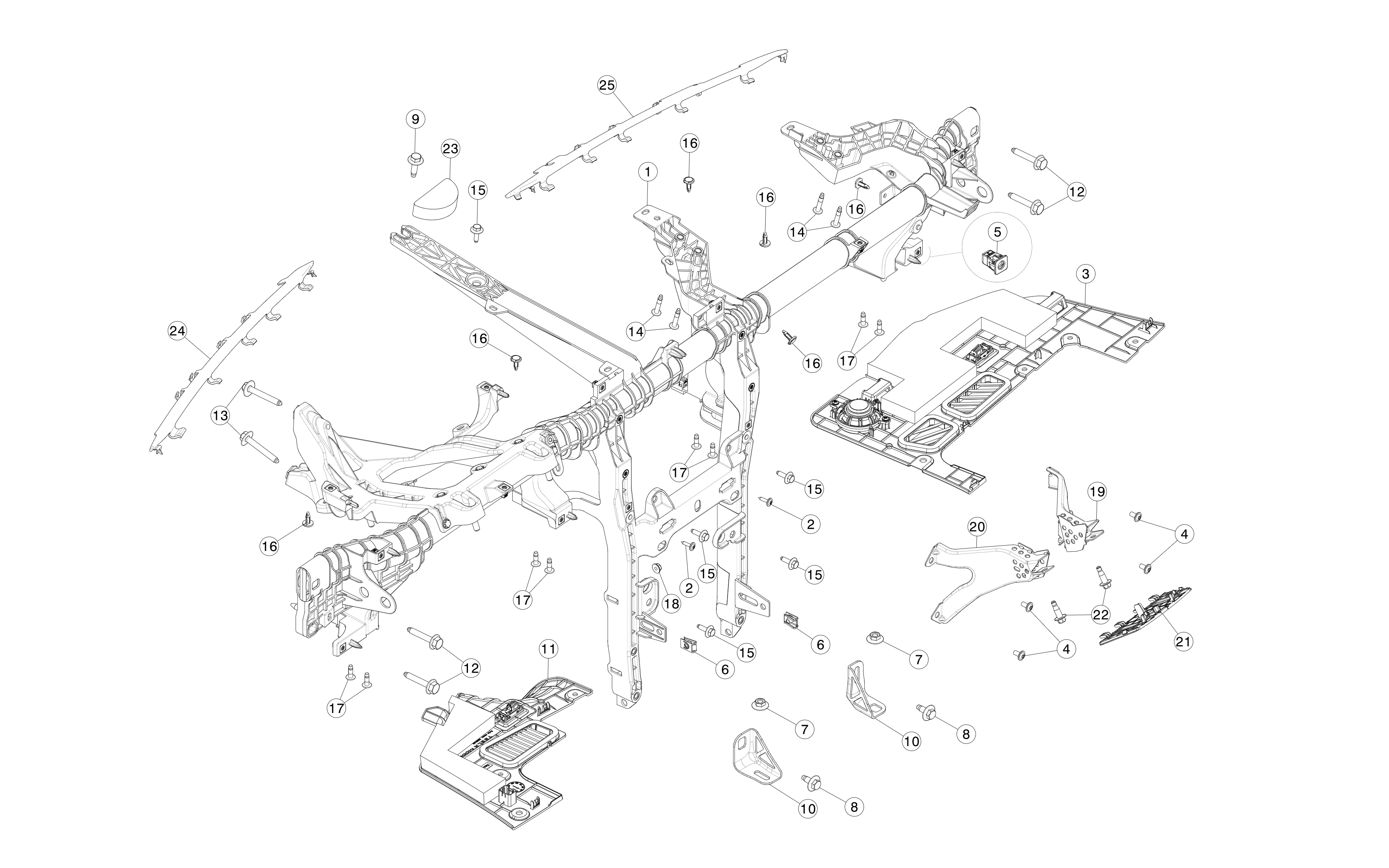

3 1405 02 Dash Support Frame
| # | PART | PART NUMBER | SALES RESTRICTION | UNIT PRICE ( ) | QUANTITY |
|---|---|---|---|---|---|
| 1 | M3, IP, CROSS CAR BEAM, ASY | 1095440-00-G | Over-the-Counter(No VIN) | 0 | 1 |
| 1 | M3, IP, CROSS CAR BEAM, ASY | 1095440-00-H | Over-the-Counter(No VIN) | 0 | 1 |
| 2 | SCREW T20 ST4.2X20 W WASHER | 1014049-00-B | Over-the-Counter(No VIN) | 0 | 2 |
| 3 | M3, IP, PASSENGER FOOTWELL, ASY | 1100553-00-F | Over-the-Counter(No VIN) | 0 | 1 |
| 4 | BOLT,PF,M6x12,[98],G1409 | 1008842-00-A | Over-the-Counter(No VIN) | 0 | 4 |
| 5 | SCREW GRMMT,9.45x9.45,PA66 | 1095453-00-A | Over-the-Counter(No VIN) | 0 | 25 |
| 6 | J-NUT M6 0.5-3.0 MULTITHREAD | 1013802-00-B | Over-the-Counter(No VIN) | 0 | 2 |
| 7 | NUT,HF,M8-1.25,[10],G1009[B] | 1454546-00-A | Over-the-Counter(No VIN) | 0 | 2 |
| 8 | BOLT,HF,M8-1.25x22,[98],G0110,MAT | 1508732-00-A | Over-the-Counter(No VIN) | 0 | 2 |
| 9 | BOLT HF, M8x22, STL[88] ZN, MAT | 1109333-00-A | Over-the-Counter(No VIN) | 0 | 1 |
| 10 | M3, IP, CCB, FLOOR BRKT CENTER | 1508647-00-A | Over-the-Counter(No VIN) | 0 | 2 |
| 11 | M3, IP, DRIVER FOOTWELL, ASY | 1100579-00-F | Over-the-Counter(No VIN) | 0 | 1 |
| 12 | BOLT, HF, M8x45, STL[109], ZN, PTC | 1100125-00-A | Over-the-Counter(No VIN) | 0 | 4 |
| 13 | BOLT,HF,M8-1.25x61,[109],G1009,PC | 1104656-00-C | Over-the-Counter(No VIN) | 0 | 2 |
| 14 | BOLT,EHS,M6x33,[98],G0109,MAT,ADH | 1112138-00-C | Over-the-Counter(No VIN) | 0 | 4 |
| 15 | BOLT HF M6X18 PC88 MAT | 1006529-00-A | Over-the-Counter(No VIN) | 0 | 4 |
| 16 | PUSH RIVET, 6-6.4 HOLEx2-6 GRIP,PA6/6 | 1099269-00-B | Over-the-Counter(No VIN) | 0 | 6 |
| 17 | BOLT,EHS,M6x19,[88],ZN,SMAT,ADH | 1116594-00-B | Over-the-Counter(No VIN) | 0 | 8 |
| 18 | NUT HF M6-1.00[8]ZnAl | 2007207 | Restricted | 0 | 1 |
| 19 | M3, IP, SCREEN BRACKET, WELDED, LH | 1100561-00-E | Over-the-Counter(No VIN) | 0 | 1 |
| 20 | M3, IP, SCREEN BRACKET, WELDED, RH | 1100562-00-E | Over-the-Counter(No VIN) | 0 | 1 |
| 21 | M3, IP, SERVICE PANEL, SUBSTRATE | 1105487-00-G | Over-the-Counter(No VIN) | 0 | 1 |
| 22 | BOLT,HF,M6x7,STL[88],ZN,SHLDR[8x18] | 1105061-00-E | Over-the-Counter(No VIN) | 0 | 2 |
| 23 | M3, IP, COWL TOP FOAM | 1099268-00-B | Over-the-Counter(No VIN) | 0 | 1 |
| 24 | M3, IP, DEFROST COVER, LH | 1130988-00-C | Over-the-Counter(No VIN) | 0 | 1 |
| 25 | M3, IP, DEFROST COVER, RH | 1130985-00-C | Over-the-Counter(No VIN) | 0 | 1 |
