모델 3 > 44 - 고 전압 시스템 > 4401 - 충전 시스템 인렛 > 충전 포트

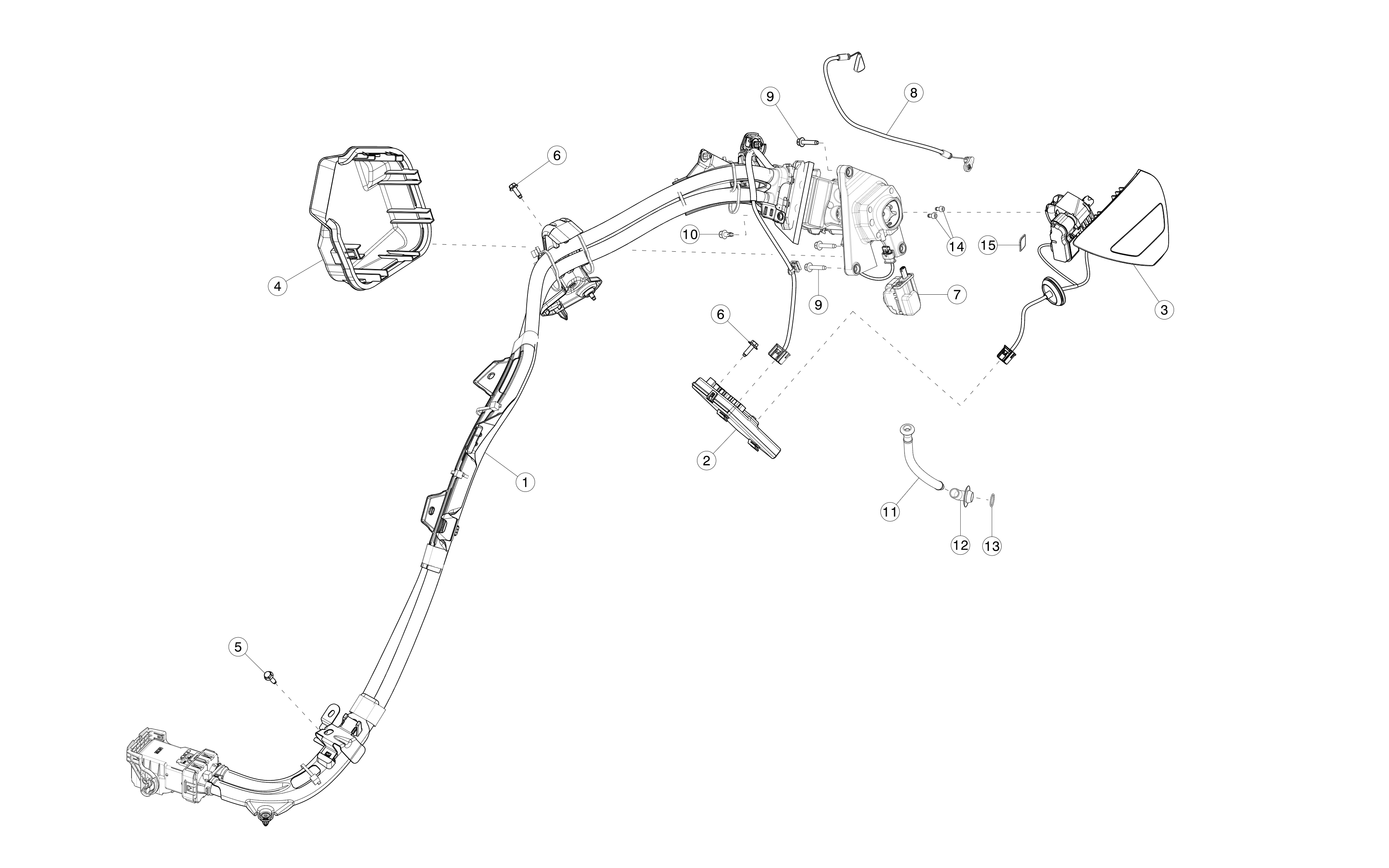

3 4401 01 Charge Port

#	PART	PART #	RESTRICTION	U/P ( )	QUANTITY
1	HV HARN,INLET,NA,CP,M3	1449495-10-E	Over-the-Counter(No VIN)	0	1
1	CHARGEPORT, NA,CP,M3/Y	1490374-10-C	Over-the-Counter(No VIN)	0	1
2	CP ECU, Assy, Gen 3, NA	1092755-98-D	Over-the-Counter(No VIN)	0	1
2	CP ECU, ASSY, GEN 4, NA	1537264-00-B	Over-the-Counter(No VIN)	0	1
3	CHARGE PORT DOOR,TOP ASY,GEN3,M3,NA	1084854-99-J	Over-the-Counter(No VIN)	0	1
3	MDL3Y CHARGE PORT DOOR SERVICE KIT	1448344-00-B	Over-the-Counter(No VIN)	0	1
4	ASY,CLOSEOUT PNL,CP,M3,ALL REGIONS	1479255-00-B	Over-the-Counter(No VIN)	0	1
4	SAFETY CAP, NA,CP,MY	1506911-00-D	Over-the-Counter(No VIN)	0	1
5	BLT HF M6-1.00x20[8.8]ZnAlW	1009420-00-A	Over-the-Counter(No VIN)	0	1
6	BOLT,HF,M6-1.0x21[88],G1009[B],MAT	1139785-00-A	Restricted	0	1
7	LATCH SUB ASSY,SERVICE,CP,NA,M3	1492302-10-B	Over-the-Counter(No VIN)	0	1
*	O-RING,AS568-009,INT.LUBRICATED EPDM,A70	1029294-02-A	Over-the-Counter(No VIN)	0	1
8	RELEASE CABLE,LATCH,NA,Gen I CP,M3	1093124-00-C	Over-the-Counter(No VIN)	0	1
9	BOLT,HF,M6-1.0x30,[88],ZNNI,SMAT	1129025-00-A	Over-the-Counter(No VIN)	0	3
10	SCR,HF,M6x16,[STL],SNZN,PTC,T2000	1128091-00-B	Over-the-Counter(No VIN)	0	1
11	M3S BIW CHARGE PORT TUBE ASSY	1103778-00-A	Over-the-Counter(No VIN)	0	1
12	ELBOW-DRAIN TUBE ASM	1023052-00-A	Over-the-Counter(No VIN)	0	1
13	O-RING,11/16in ID, 1/16 ID	1021785-00-A	Over-the-Counter(No VIN)	0	1
14	DEADFRONT,DC,PIN,NA,CP,M3/Y	1462932-00-C	Over-the-Counter(No VIN)	0	2
14	DEADFRONT,PIN,CP,M3,SERVICE	1470434-00-C	Over-the-Counter(No VIN)	0	1
15	SENSOR TARGET ASSY,MCPD,GEN3,M3	1473503-00-A	Over-the-Counter(No VIN)	0	1
*	BRACKET 4,ALL REGIONS,CP,M3	1462869-00-B	Over-the-Counter(No VIN)	0	1
*	ASY,HARN,JUMPER,CHARGEPORT INLET	1551811-00-B	Over-the-Counter(No VIN)	0	1
