모델 3 > 31 - 서스펜션 > 3101 - 전방 서스펜션 (포함, 허브) > 전방 서스펜션 암

2020. 10. 29. 21:44테슬라 모델 3/31 - 서스펜션

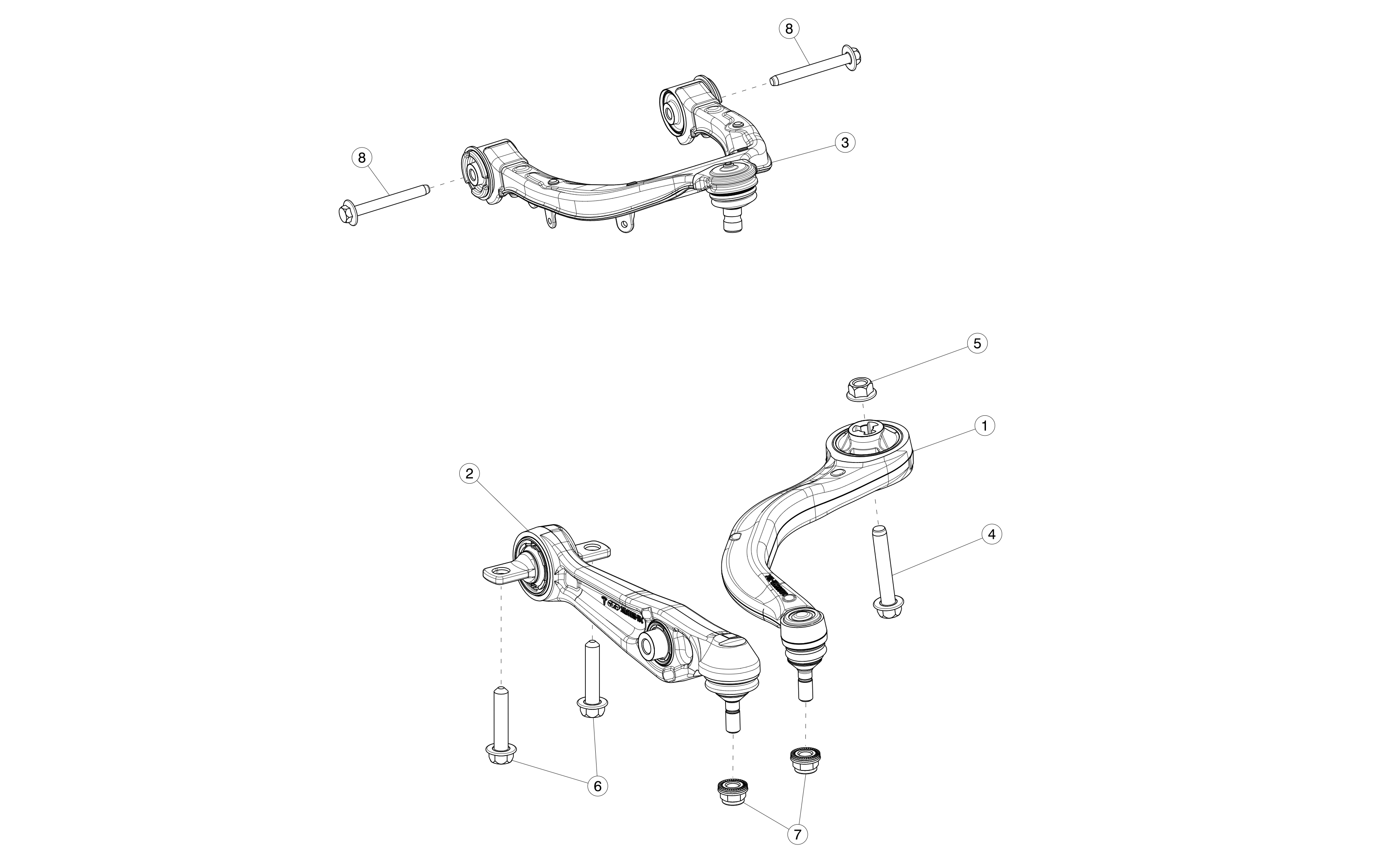

3 3101 03 Front Suspension Arms

#PARTPART NUMBERSALES RESTRICTIONUNIT PRICE ( )QUANTITY
1FR LWR COMP LINK ASSY, 0.975 kN/mm, LH1044354-00-AOver-the-Counter(No VIN)01
1FR LWR COMP LINK ASSY, 0.975 kN/mm, RH1044359-00-AOver-the-Counter(No VIN)01
2FR LWR LATERAL LINK ASY1044341-00-DOver-the-Counter(No VIN)02
3FR UPR CTRL ARM ASSY, LH1044321-00-HOver-the-Counter(No VIN)01
3FR UPR CTRL ARM ASSY, RH1044326-00-HOver-the-Counter(No VIN)01
4BOLT,HF,M14-1.5x83,[109],ZNFL,SMAT1109823-00-BOver-the-Counter(No VIN)02
5NUT,HF,M14-1.5,[10],ZNNI1112245-00-AOver-the-Counter(No VIN)02
6BOLT,HF,M14-2.0x65,STL[109],ZNFL1109912-00-AOver-the-Counter(No VIN)04
7NUT&WSHR[SW],M14x1.5,[10],ZNFL,PTP1109263-00-BOver-the-Counter(No VIN)04
8BOLT,HF,M10-1.5x87,STL[109],ZNFL,SMAT1130701-00-AOver-the-Counter(No VIN)04
