모델 3 > 30 - 새시 > 3001 - 새시 및 서브프레임 > 전방 서브프레임
2020. 10. 29. 04:52ㆍ테슬라 모델 3/30 - 새시

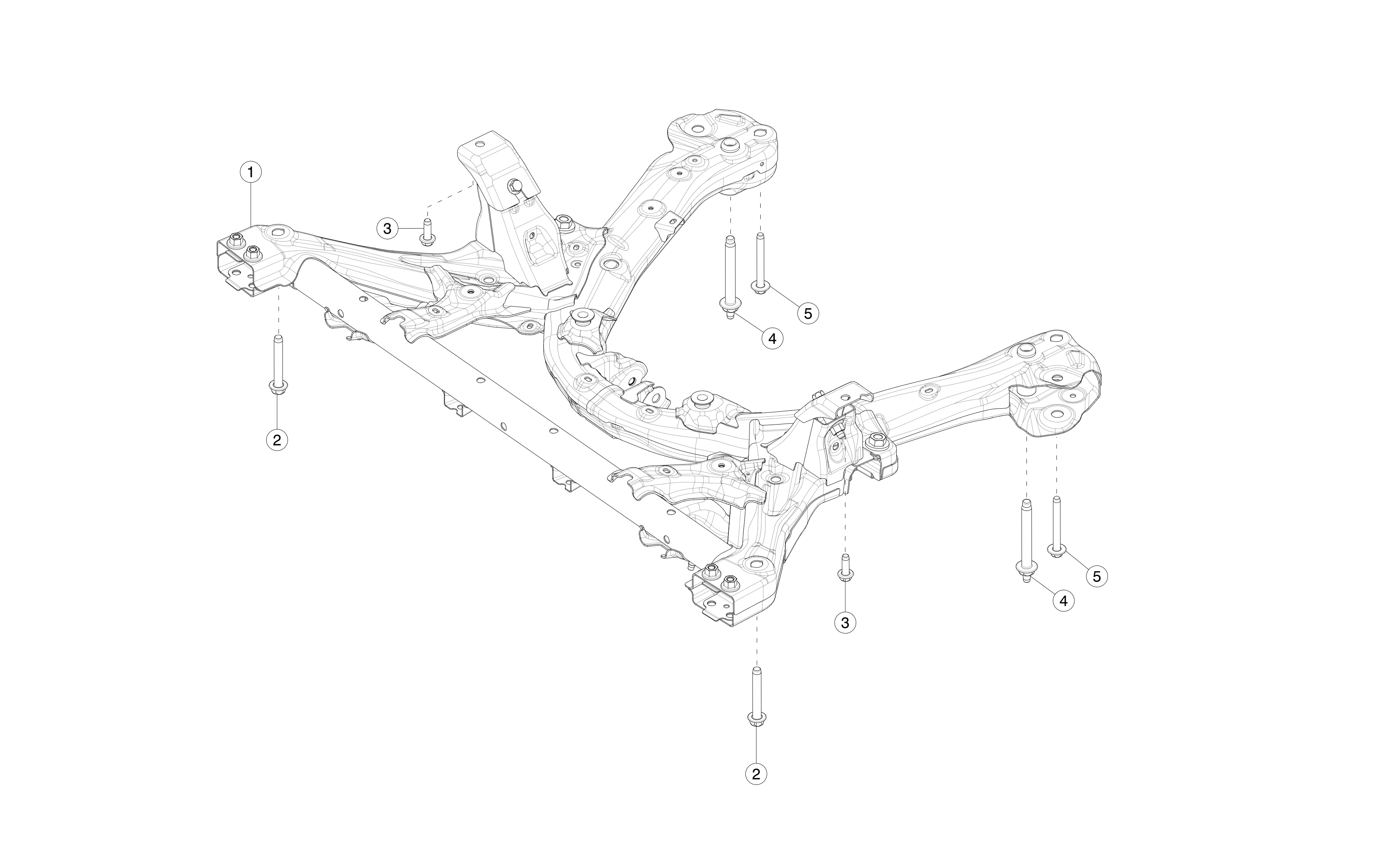

3 3001 01 Front Subframe
| # | PART | PART # | RESTRICTION | U/P ( ) | QUANTITY |
|---|---|---|---|---|---|
| 1 | FR SUBFRAME STRUCTURE, MODEL 3 | 1044521-00-N | Over-the-Counter(No VIN) | 0 | 1 |
| 1 | FR SUBF ASSY MDL3/Y | 1044531-00-B | Over-the-Counter(No VIN) | 0 | 1 |
| 2 | BOLT,HF,M12-1.75x99,[109],ZNFL,CMAT | 1461643-00-A | Over-the-Counter(No VIN) | 0 | 2 |
| 3 | BOLT,HF,M10-1.5x30,[109],ZNFL,SMAT | 1111151-00-A | Over-the-Counter(No VIN) | 0 | 2 |
| 4 | DBL,HF,M14x120+M10x16,CMAT,[109],ZNFL | 1456640-00-A | Over-the-Counter(No VIN) | 0 | 2 |
| 5 | BOLT,HF,M10-1.5x94,[109],ZNFL,CMAT | 1461654-00-A | Over-the-Counter(No VIN) | 0 | 2 |
